Your little helper: A simple diagram that may help you to solve malfunctions in your TBI vacuum system.
applies to |
|
|---|---|
Brand |
Chevrolet |
Model |
L03 (5.0L) and L05 (5.7L) TBI engines |
Year |
1987-1993 |
Maybe you know the problem: I've hundreds of pages of wiring diagrams, but only one incomplete vacuum diagram in bad printing quality. If you search the internet or look at your repair manual, you'll find stuff like this:

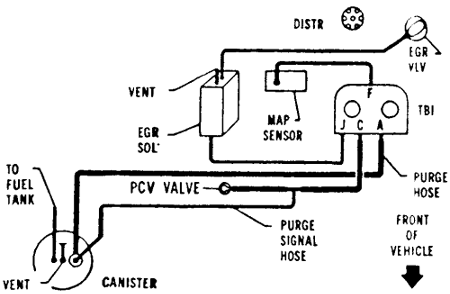

The image only shows the vacuum lines that belong to the emission control system. Next problem, if you have no idea how an EGR Solenoid or MAP Sensor look like, you might have trouble finding the parts at your car.

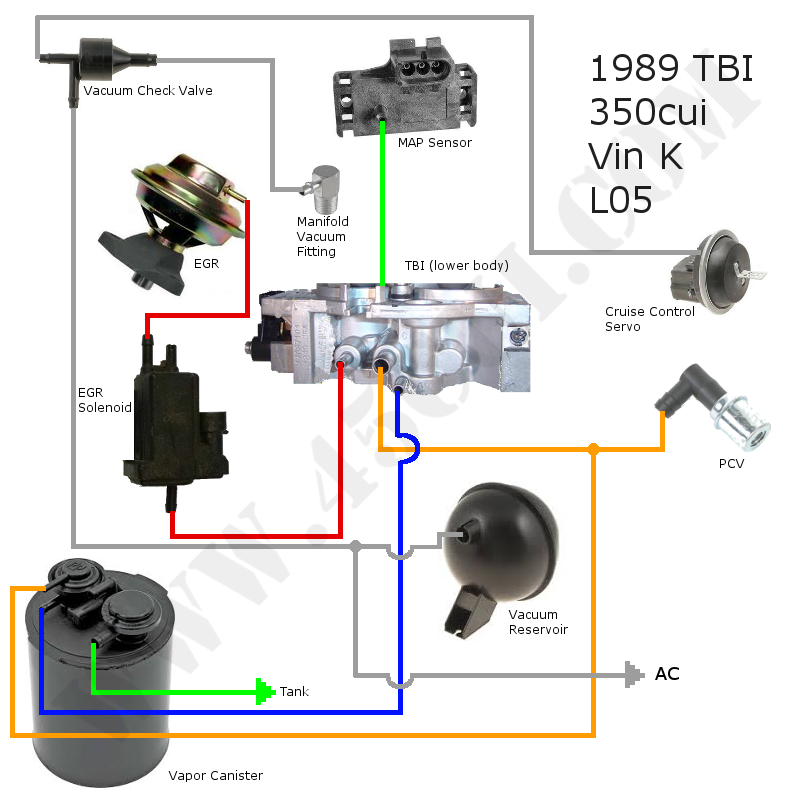

This might help better:
The vent port of the EGR Solenoid is the short and smooth terminal. Do not attach any vacuum or pressure line to that port. Keep it open.
The EVAP Canister (Vapor Canister) in this diagram has the purge valve attached (left side, two lines attached) to the canister. Many cars have the purge valve seperated.
